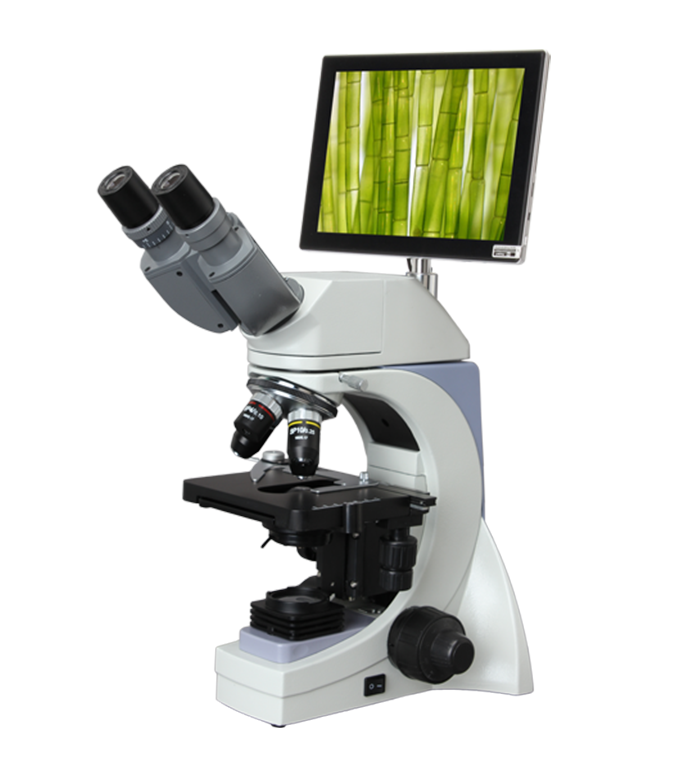

LCD Digital Microscope NLCD-120

NLCD-120 digital LCDmicroscope is a new generation microscope with Android OS, just like a tablet.

Support WiFi wireless and bluetooth. It’s easy to extend the application.

With 9.7 inch LCD screen, wual core 1.8G processor, HDMI video output and TF card expansion. It’s easy to use and can be widely used in various optical micro fields, such as teaching, researching, electronic checking and so on.

Download

Technical Specifications

NLCD-120E Technical specifications
Digital part	5.0 Mega Pixels CMOS Chip
Digital part	Support Wifi and Bluetooth
Viewing Head	Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm
Eyepiece	Wide Field Eyepiece WF10X/18
Objective	Semi-Plan Achromatic Objective 4X、10X、40X、100X
Nosepiece	Quadruple Nosepiece
Stage	Double Layers Mechanical Stage 140X140/75X50
Condenser	Sliding-in centerable condenser NA1.25
Illumination	6V/20W Halogen Lamp Illumination, Adjustable Brightness
Illumination	S-LED Illumination, Adjustable Brightness
LCD Screen	9.7 Inch LCD（2048*1536）
Output	USB2.0、Mini HDMI、3.5mm headphone
OS	Android 5.1
Software	S-EYE
SD Card	Support TF Card
Mouse

NLCD-120F Technical specifications
Digital part	5.0 Mega Pixels CMOS Chip
Digital part	Support Wifi and Bluetooth
Viewing Head	Compensation Free binocular head, 30° inclined, Interpupillary 52-75mm
Eyepiece	Wide Field Eyepiece WF10X/18
Objective	Infinite Semi-Plan Achromatic Objective 4X、10X、40X、100X
Nosepiece	Quadruple Nosepiece
Stage	Double Layers Mechanical Stage 140X140/75X50
Condenser	Sliding-in centerable condenser NA1.25
Illumination	6V/20W Halogen Lamp Illumination, Adjustable Brightness
Illumination	S-LED Illumination, Adjustable Brightness
LCD Screen	9.7 Inch LCD（2048*1536）
Output	USB2.0、Mini HDMI、3.5mm headphone
OS	Android 5.1
Software	S-EYE
SD Card	Support TF Card
Mouse
